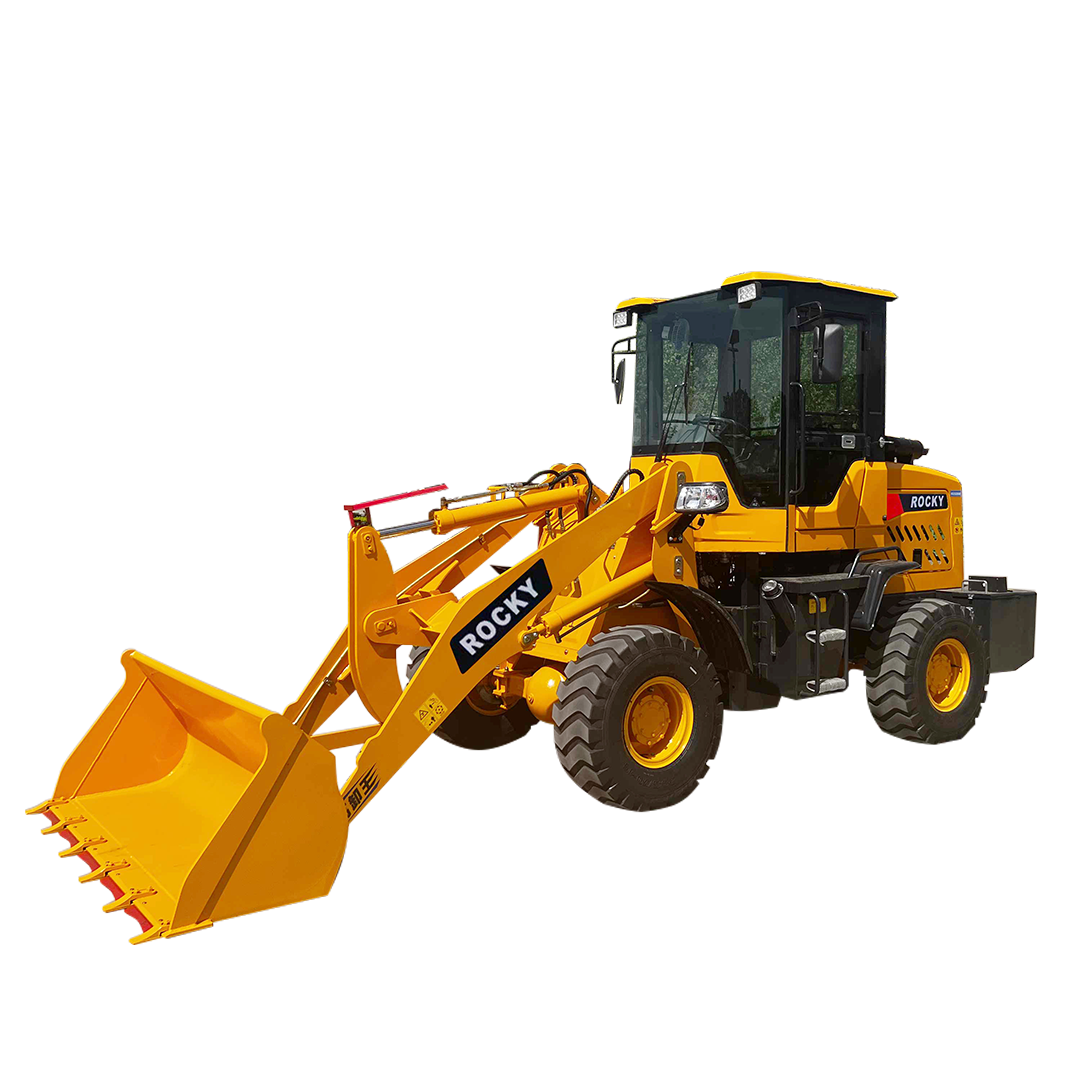

Rocky Loaders 928D - 928D
TOTAL WEIGHT | 3700 KG |
RATED LOAD | 1400 KG |
FULE TYPE | DIESEL |
ENGINE | YUNNEI YN27 |
TOTAL WEIGHT | 3700 KG |
RATED LOAD | 1400 KG |
FULE TYPE | DIESEL |
ENGINE | YUNNEI YN27 |
IDENTIFICATION | |
Total Weight | 3700 KG |
Rated Load | 1400 KG |
Fuel Type | Diesel |
Tyre | Pneumatic Front & Rear Tyre |
Wheel Quantity | 2 Front / 2 Rear |
DIMENSION | |
Loader Length | 5790 mm |
Loader Width | 1950 mm |
Dumping Height | 3200 mm |
Dumping Distance | 900 mm |
TRANSMISSION SYSTEM | |
Converter Model | 265Y |
Gearbox Pattern | Hydraulic |
Gear Shifts | 2 Forward, 2 Reverse |
Max Speed | 20 Km/h |
Drive Model | Auto, 4WD |
ENGINE SYSTEM | |
Manufacturer | Yunnei |
Type | YN27 |
Emission Standard | - |
Rated Output | 42 KW |
Rated Torque | 2650 RPM |
No. of Cylinder | 4 |
TYRE | |
Quantity | 2 Front / 2 Rear |
Front Tyre Size | 20.5-16 (Optional 23.5-16) |
Rear Tyre Size | 20.5-16 (Optional 23.5-16) |
AXLE | |
Axle Type | Decelerating Type |
BRAKE SYSTEM | |
Service Brake | Pneumatic Disc Brake |
Park Brake | Hand Operated Caliper Disc |
